5.5 How To bring an instrument back on line after failing QC

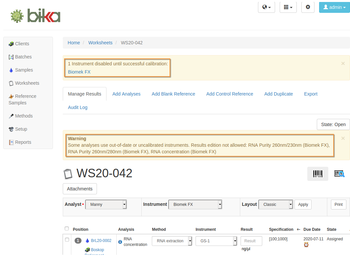

Invalid Instrument warnings

Once an instrument has failed QC, warnings are displayed in contexts where they are of importance, e.g. open Worksheets the instrument is assigned to

Fix the Instrument

Before the failing instrument can be used again, it has to be fixed and tested to be in reliable order using more reference samples. It is best to record all results from the instrument while it is being validated by capturing them on 'calibration' worksheets. Once valid, in range, QC results are confirmed in the LIMS, it'll be available for routine testing again

It can be kept offline longer by recording the Validation procedure, as with other Maintenance tasks, in more details on the Instrument records itself, and the eventual calibration certificate too. Only when that event is completed, will the instrument be back for routine use

Calibration Worksheets

Create Worksheet for Instrument Calibration

It is useful a good idea to keep Templates for this purpose as selecting control samples for an empty worksheet manually is problematic - it is not clear to theLIMS which Analyses valid control samples have to be found for

As workaround, a dummy sample and the analyses to be QC'd can be added to the WS first. The LIMS will then offer all relevant QC samples in stock to select from. Select and add

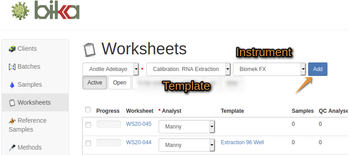

Using a Worksheet Template:

Select a Template and click Add

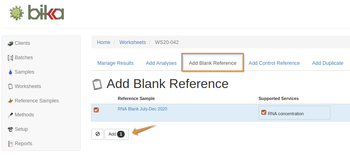

In this example, a worksheet with only two Blank Controls in it is created

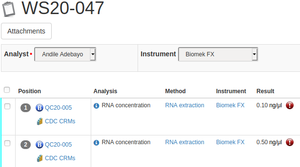

Submit Reference Sample results

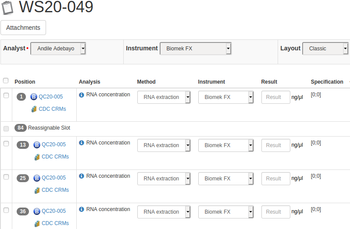

Capture all results as they come in, adding more reference Samples or Worksheets as required

Save, Submit and Verify the QC results

-----------------8<---------------------------------------

Also see Quality Control in Bika

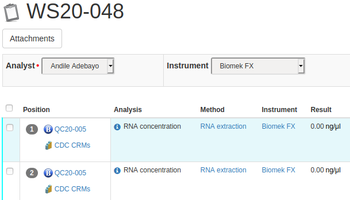

Capturing QC results

QC Failure Workflow

For full record keeping, capture results failing QC too, until the instrument delivers valid results consistently

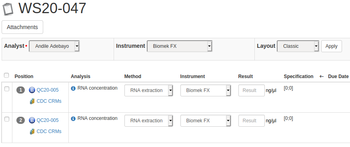

Pass, and the warnings re uncalibrated instruments are removed

All Set

When the instrument clears this hurdle, it is ready to go again

Recovered Instrument are back online and can be used on subsequent Worksheets, and on others quarantined earlier

New routine Worksheet
