Concrete and Mortar Mixes

Disclaimer

  Table of Contents...

The Mix Testing Story

1. A research team produces ideas for Concrete, Mortar or Paste Mixes that have to be produced and tested
2. The Mix Designs in the lab’s spreadsheet system, its ingredients and physical properties, is used to make up Mix templates per Sample Batch - at the same time calculating the volume and weight of material required for the number of Samples
3. Technicians doing the mixing, print out the Batch’s mix information to measure the ingredients from the spreadsheet
4. They capture Mix data during the process to the spreadsheets, e.g. Lab and Mix temperatures
5. LIMS Batches have an extra ‘Mix’ tab that is populated by importing importing a summary of the spreadsheet
6. A Sample’s Mix information, read from its Batch, is included on its COA

At this stage of development, the Mix tab holds static data only and the information is only used for reference purposes and on the COA, for users to review Analysis results in context

Spreadsheet Design format

In this first release, Imperial units are used for concrete and  SI units for mortar and paste

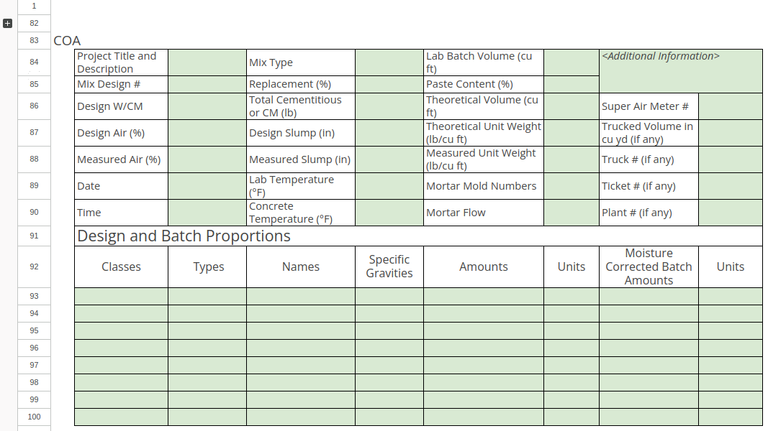

The spread sheet can use the first sheet and the top part of the 2nd sheet for raw data capturing, from where summary results are looked up in a COA section

COA layouts for Concrete and Mortar Mixes differ and carry only the corresponding information. The spreadsheet table however is always in the same format for both, only one parser is used. COA layouts

Fields redundant for mortar Mixes, and vice versa concrete, can be empty in the spreadsheet.

Since macros can be used in other parts of the spreadsheet to deliver the summary results in the COA section, it is imported as a MS .XLSM

Importing the .XLSM                Mix tab on Batches               COAs
